Internal Pipe Sand blasting Machine specifications table:
Technical Specifications | SB IPBT | SB IRB T(A) | SB IRBT (B) | SB IRBT(C) |
Nozzle Size (mm) No. of Nozzle | 12.5 1 | 6 2 | 8 2 | 10 2 |
Pipe ID to be cleaned (mm) (inch) | 51-305 (2-12) | 165-254 (6-10) | 254-600 (10-24) | 600-914 (24-36) |
Compressed air consumption (cfm) at 90psi | 200 | 250 | 365 | 600 |
Dimension (mm) | 230x110x610 | 180x180x880 | 180x180x880 | 180x180x880 |
Approx. Weight (kgs.) | 5 | 15 | 15 | 15 |

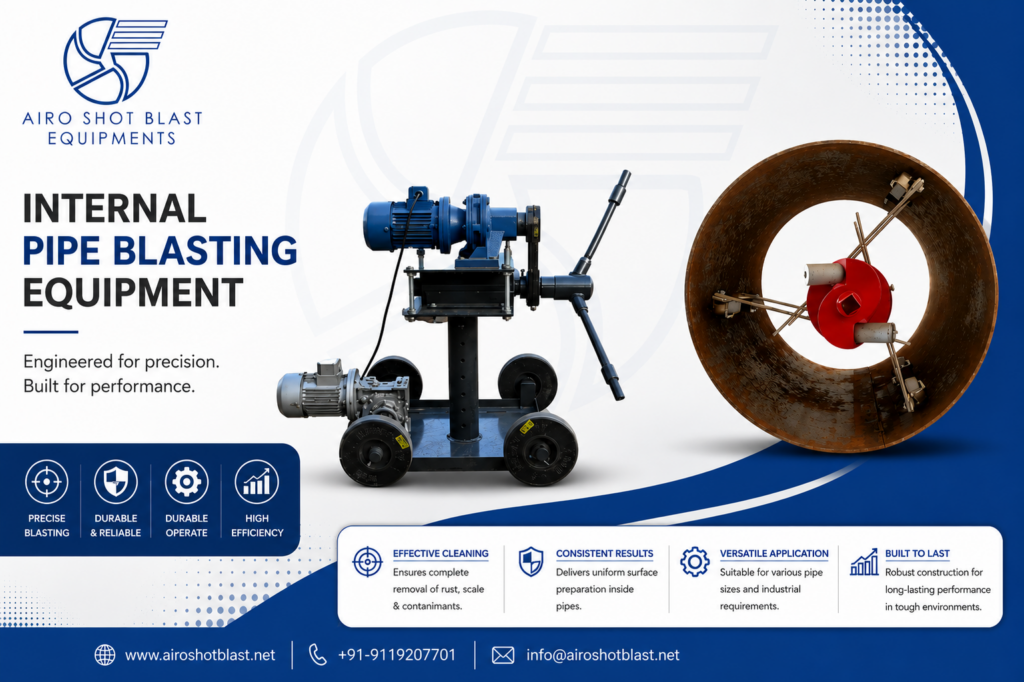

We are offering two pneumatic models of Internal Pipe Sand blasting Machine used for cleaning inside the diameter of the pipe (ranging 51-914mm) and up to 40 feet. These tools are easy to operate and no rotation of heavy pipes is required, hence saving time and expenditure. The tool is included in hollow pipes coupled with portable blasting machine via blasting hose and moved on lightweight centering carriage, the tool is further pushed manually from one end to the other. Thus, blasting is carried to remove stubborn rust, carbon mill scale, old paints, etc. to obtain white metal finish (ideal for further coating).
Operating Principle of External Steel Pipe Shot Blasting Machine:
In pipe blasting machine having two blast wheels, these blast wheels are positioned at the bottom and top side of the pipe blasting machine. The entire cabinet is filled with Manganese Steel Tile. The inlet and outlet side cabinet (pipe blasting equipment) is produced through the suction rubber curtain of different sizes matching the different OD of the pipe. Rubber curtain blocks shaking of shots from pipe blasting devices. The entire pipe shot blasting machine is properly ventilated by powerful Pulse jet type Dust Collector. The pipes are kept on the inner side of the screw conveyor unit and are taken into blast room where a blast wheel abrasive media to clean the surface of the pipe and is thus completely blast cleaned in pipe blasting machine. This cleaned blasted pipe extends out from the outlet portion of the conveyor belt from where the pipe is carried out from pipe blasting equipment to a suitable place.
Features Of Internal Pipe Blasting Equipment:
- 360° blasting of the internal diameter of the pipe (2”-36” & 12 Mtr Length) for removal of any kind of contamination.
- Non-rotation of heavy pipes.
- Economic, efficient, and Light Weight for effortless handling.
- Pneumatically operated, no electricity required.
- Attached to proper Portable Blaster Models (SB PORT 150/300/500/0/1000), easy setup.
- Supplied with centering collar and adjustable centering carriage to suit a varied range of pipe diameters.
- Supported all abrasive mesh 18-40 (except river garnet/sand, aluminum oxide, and silicon oxide).
- Industrial applications: Refineries, Pipe Liners/Manufacturers, Shipyard Water, Gas, and Chemical Factories, etc.
Internal Pipe Sand blasting Machine Manufacturer
We are is the leading Internal Pipe Sand blasting Machine manufacturer in India that offers the complete automatic grit blasting machine, Sand blasting machine, Shot blasting machine, and abrasive media with the R&D (Research & Development) at a low price. Our team of experts essentially brings you a customized machine for efficiently increasing the result. We have the highest quality techniques that are well versed in handling everything from the design, planning, implementation, and many others. Based on the complete understanding of the prerequisite of customers along with other essential conditions, we design the complete system accordingly in more uniqueness.
