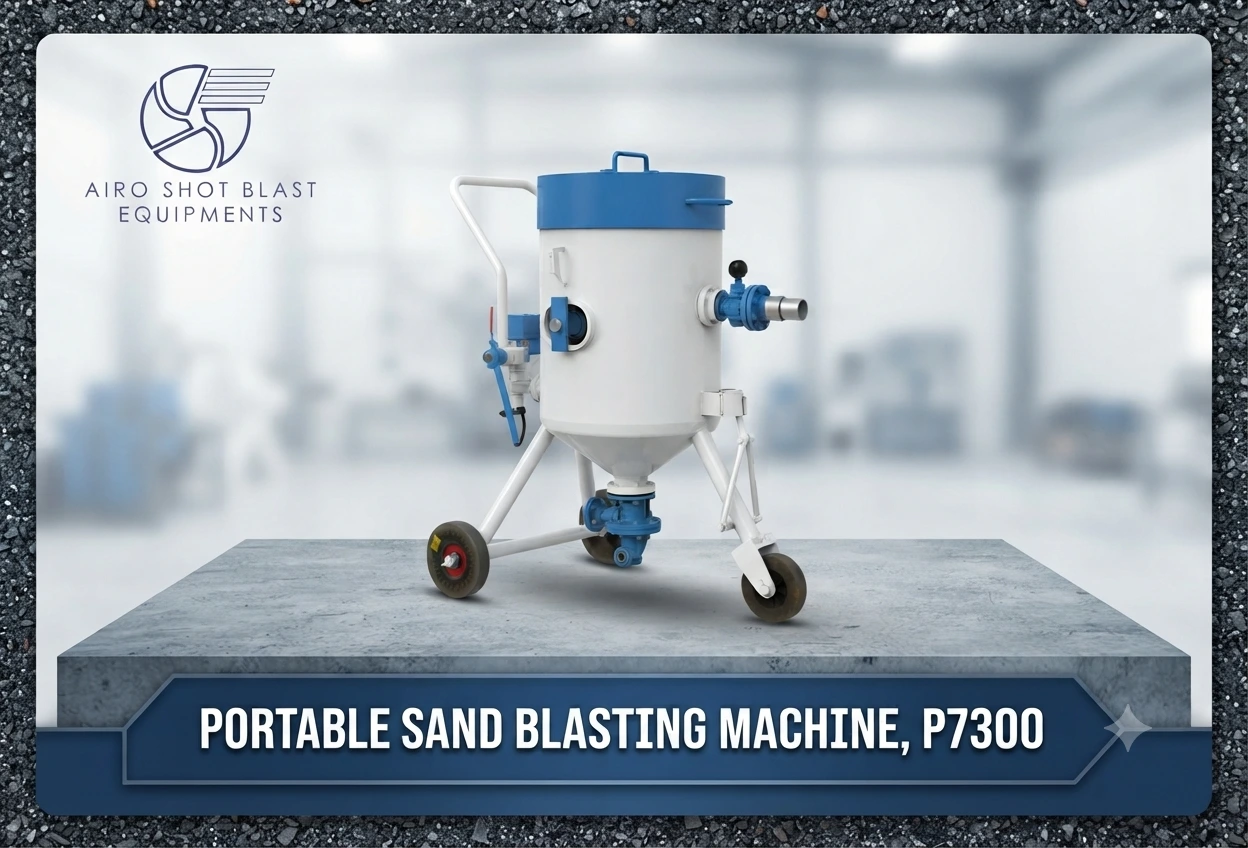

Portable Sand Blasting Machines, P7300

Portable Sand blasting machines, P7300 are semi medium models for contractors. This is a lightweight model and easy to move from one site to another site.

Portable Sand Blasting Machines

Portable Sand blasting machines or portable sand blasting hopper are used for the process of smoothing, shaping, and cleaning a surface by forcing solid particles across that surface at high speeds or with high velocities; the abrasive blasting effect is similar to that of using sandpaper but provides a more even finish with no problems at corners or crannies or cracks.

Sand Blasting Machines

Sand blasting machines or sand blasting hoppers can occur naturally, usually as a result of particles blown by wind causing erosion, or artificially, by using compressed air using air compressors. A medium-capacity sand blasting machine (sandblast mobile - P7300) is a machine without remote control, which means the operator needs to manually switch ON/OFF the machine knob of the blasting pot. Sand Blasting Hopper (blasting pot) is easy to move from one place to other. A portable sand blasting system is used for cleaning, rust removal, and corrosion removal.

Sand blasting Machines,  P7 300

Abrasive tank capacity:

Metallic                                                300 Kg.

Sand                                                    130 Kg.

Volume                                                85 Ltrs.

Std. Sandblast Hose Length                5 mtrs.

Blast Hose I.D.                                     19 mm.

Sand blasting Nozzle Orifice                6 mm

[Tungsten Carbide Lined]

Overall Dimensions:

 Height                                                  1291 mm

Diameter                                              461 mm

Weight                                                 141 Kg.

 Air Filter & Pressure Gauge fitted       1 No. Each.

Automatic Exhaust Valve fitted             1 No.

Abrasive Control through

Pinch Valve fitted                                 1 No.

Approx. Cleaning Rate                         5-9 Sq. Mtrs./Hr.

[Only for guidance]

Compressed air required at 80 psi.       85 Cfm.

Recommended Abrasive Size              25 to 80 Mesh.

 UTILITIES (To be arranged by the user):

 Dry & oil-free compressed air and its connection up to the machine’s inlet. Abrasive media required for sand blasting machine or media blasters.

 NOTE

The above specifications are for guidance and subject to change without notice. Data/Dimension furnished in chart super cedes data/Dimension in

literature, wherever applicable in abrasive material blasting (media blasters).
